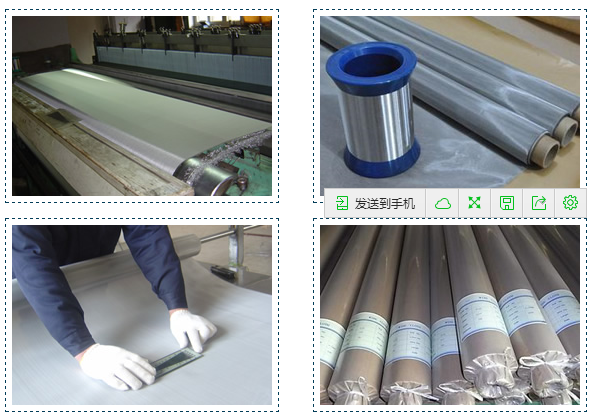

Stainless Steel Wire Mesh

Product name : Stainless Steel Wire Mesh

Stainless Steel Wire Mesh

We produce Stainless Steel Wire Mesh from first class stainless steel wire materials in SUS302, 304, 316, 304L, 316L.

Typical Weaving Patterns for Stainless Steel Wire Mesh: Plain weave, twill weave, dutch weave.

General Use: Stainless steel wire mesh, with its excellent resistance against acid, alkali, heat and corrosion, find extensive uses in processing of oils, chemicals, food, pharmaceuticals, also sorting and screening of solid, liquid and gas in mine, metallurgy, airspace, machine making, etc.

Varieties according to materials:
304 Stainless steel wire mesh;
304L Stainless steel wire mesh;
316 Stainless steel wire mesh;
316L Stainless steel wire mesh.
Sizes:
Standard roll width: 1m to 48".
Standard roll length of stainless steel wire mesh: 30m to 100".
Type 304 often refers to as "18-8" (18% chromium, 8% nickel ). T-304 is the basic stainless alloy mostly commonly utilized for wire cloth weaving. It withstands outdoor exposure without rusting and resists oxidation at an elevated temperature up to 1400 Degrees Fahrenheit. Type 304 L is very similar to T-304, the difference being the reduced carbon content for better weaving and secondary welding characteristics.
Type 316: Stabilized by the addition of 2% molybdenum, T-316 is an "18-8" alloy. Type 316 has better resistance to pitting corrosion than the other chromium-nickel stainless steels where brines, sulfur-bearing water or halogen salts, such as chlorides are present. Type 316 L: Type 316 L is very similar to T-316, the difference being the reduced carbon content for better wire cloth weaving and secondary welding characteristics.

and secondary welding characteristics.

Mesh/Inch	Wire Diameter		Aperture		Open Area	Weight(LB) /100 Square Foot
Mesh/Inch	Inch	MM	Inch	MM	Open Area	Weight(LB) /100 Square Foot
1x1	0.080	2.03	0.920	23.37	84.6	41.1
2X2	0.063	1.60	0.437	11.10	76.4	51.2
3X3	0.054	1.37	0.279	7.09	70.1	56.7
4X4	0.063	1.60	0.187	4.75	56.0	104.8
4X4	0.047	1.19	0.203	5.16	65.9	57.6
5X5	0.041	1.04	0.159	4.04	63.2	54.9
6X6	0.035	0.89	0.132	3.35	62.7	48.1
8X8	0.028	0.71	0.097	2.46	60.2	41.1
10X10	0.025	0.64	0.075	1.91	56.3	41.2
10X10	0.020	0.51	0.080	2.03	64.0	26.1
12X12	0.023	0.584	0.060	1.52	51.8	42.2
12X12	0.020	0.508	0.063	1.60	57.2	31.6
14X14	0.023	0.584	0.048	1.22	45.2	49.8
14X14	0.020	0.508	0.051	1.30	51.0	37.2
16X16	0.018	0.457	0.0445	1.13	50.7	34.5
18X18	0.017	0.432	0.0386	0.98	48.3	34.8
20X20	0.020	0.508	0.0300	0.76	36.0	55.2
20X20	0.016	0.406	0.0340	0.86	46.2	34.4
24X24	0.014	0.356	0.0277	0.70	44.2	31.8
30X30	0.013	0.330	0.0203	0.52	37.1	34.8
30X30	0.012	0.305	0.0213	0.54	40.8	29.4
30X30	0.009	0.229	0.0243	0.62	53.1	16.1
35X35	0.011	0.279	0.0176	0.45	37.9	29.0
40X40	0.010	0.254	0.0150	0.38	36.0	27.6
50X50	0.009	0.229	0.0110	0.28	30.3	28.4
50X50	0.008	0.203	0.0120	0.31	36.0	22.1
60X60	0.0075	0.191	0.0092	0.23	30.5	23.7
60X60	0.007	0.178	0.0097	0.25	33.9	20.4
70X70	0.0065	0.165	0.0078	0.20	29.8	20.8
80X80	0.0065	0.165	0.0060	0.15	23.0	23.2
80X80	0.0055	0.140	0.0070	0.18	31.4	16.9
90X90	0.005	0.127	0.0061	0.16	30.1	15.8
100X100	0.0045	0.114	0.0055	0.14	30.3	14.2
100X100	0.004	0.102	0.0060	0.15	36.0	11.0
100X100	0.0035	0.089	0.0065	0.17	42.3	8.3
110X110	0.0040	0.1016	0.0051	0.1295	30.7	12.4
120X120	0.0037	0.0940	0.0064	0.1168	30.7	11.6
150X150	0.0026	0.0660	0.0041	0.1041	37.4	7.1
160X160	0.0025	0.0635	0.0038	0.0965	36.4	5.94
180X180	0.0023	0.0584	0.0033	0.0838	34.7	6.7
200X200	0.0021	0.0533	0.0029	0.0737	33.6	6.2
250X250	0.0016	0.0406	0.0024	0.0610	36.0	4.4
270X270	0.0016	0.0406	0.0021	0.0533	32.2	4.7
300X300	0.0051	0.0381	0.0018	0.0457	29.7	3.04
325X325	0.0014	0.0356	0.0017	0.0432	30.0	4.40
400X400	0.0010	0.0254	0.0015	0.370	36.0	3.3
500X500	0.0010	0.0254	0.0010	0.0254	25.0	3.8
635X635	0.0008	0.0203	0.0008	0.0203	25.0	2.63

Stainless Steel Dutch Wire Mesh

Materials: Stainless steel wire

Weaving: Dutch plain weave, Dutch twilled weave

Features and uses: Fine wire cloth mainly for filtration, sieving, screening and various industrial separation.

Mesh	Wire Dia. (MM)	Material (AISI)
12mesh x 64mesh	0.58 x 0.40	304 or 316
24mesh x 110mesh	0.36 x 0.25	304 or 316
14mesh x 88mesh	0.50 x 0.33	304 or 316
30mesh x 150mesh	0.23 x 0.18	304 or 316
40mesh x 200mesh	0.18 x 0.13	304 or 316
50mesh x 250mesh	0.14 x 0.11	304 or 316
80mesh x 700mesh	0.10 x 0.08	304 or 316
165mesh x 800mesh	0.071 x 0.040	304 or 316
165mesh x 1400mesh	0.06 x 0.04	304 or 316
200mesh x 1800mesh	0.05 x 0.032	304 or 316
325mesh x 2300mesh	0.035 x 0.025	316L
400mesh x 2800mesh	0.030 x 0.02	316L
